4 Ton Mobile Home Coil

4 TON MOBILE HOME COIL

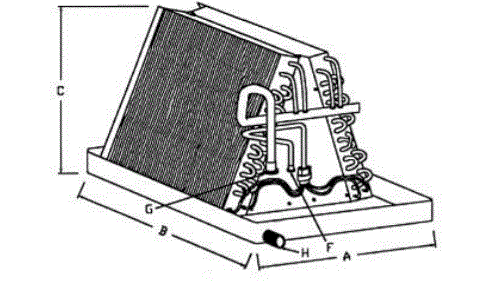

A = 18"

B = 19 1/2"

C = 18 1/2"

Hairpin Tube: UNIGUARD® by Virtus Precision Tube, 3/8” O.D. CU-422 copper alloy 2,490 PSI burst pressure minimum Rows/FPI: 2 rows, 14 FPI: 1024A-MH 3 rows, 14 FPI: 1036A-MH, 1048A-MH, 1448A-MH4X4 1036A-FED, 1048A-FED 4 rows, 12 FPI: 1064A-MH, 1449A-MH+4X4 End Plates: Aluminum Metering: Piston metered for R-410A refrigerant, additional R-22 piston optional 1448A-MH+4X4, 1049A-MH+4X4 includes factory installed R410A TXV Refrigerant connections: Pre-swaged IRV (cu. In.): 1024A=97.96 1036A=128.57, 1048A=165.30, 1064A=220.41 1448A-MH+4X4=165.30, 1449A-MH+4X4=220.41 Drain Pan: Nylon resin pans are UL 94, 5VFR rated and U.V. safe FED drain pans are metal Holding Charge: Dry nitrogen
